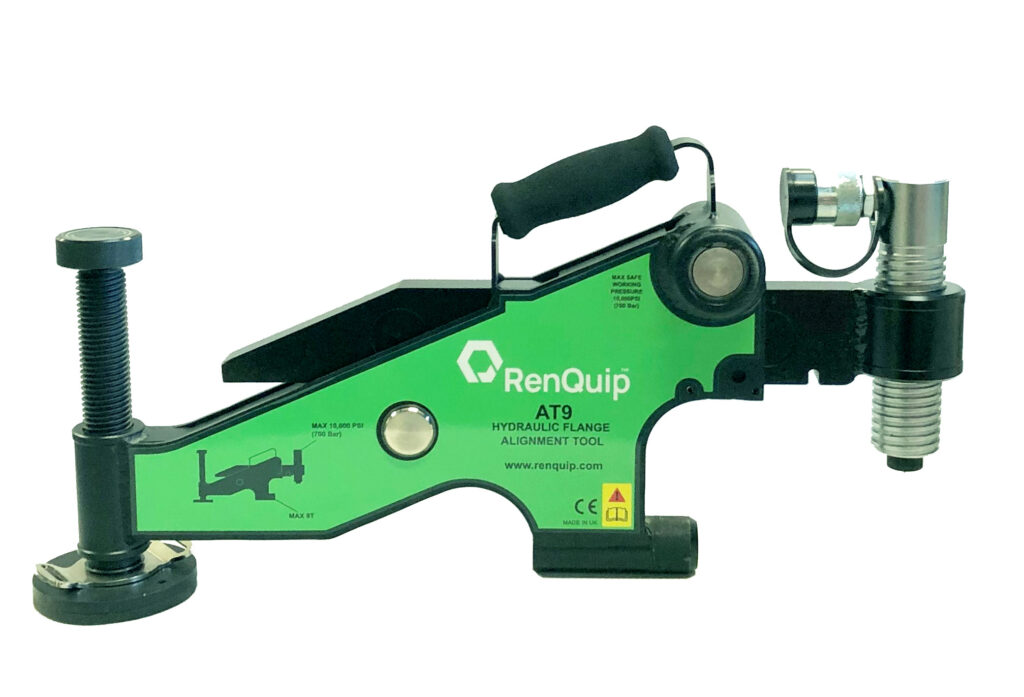

AT9K Hydraulic Flange Alignment Tool Demo & Guide
Experience the AT9K Hydraulic Flange Alignment Tool in action during a live field demonstration—engineered for precision, power, and technician-friendly operation. This instructional video walks through the alignment of a misaligned flange, showcasing proper setup, installation, and safe handling techniques.
Key capabilities featured:
- Rotational and lateral flange correction
- Bolt-hole alignment and engagement
- Pipe-to-pipe flange adjustment
Key Features
- 9-ton hydraulic alignment force for rotational and lateral flange correction
- Bolt-hole hook engagement for secure setup
- Hydraulic wing extension for precise pipe-to-pipe alignment
- Compact and portable for confined space applications
- Technician-approved for pipeline integrity and industrial maintenance
Key Applications
- Flange alignment
- pipeline installation
- valve replacement
- gasket seating
- field training in oil & gas petrochemical
- industrial sectors
Kit Options

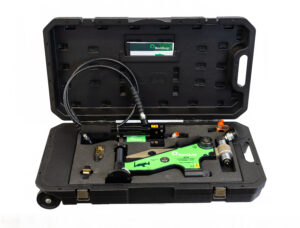

AT9K - Tool and Pump Kit
Kit Includes:
- 1 x 9 Ton Flange Alignment Tool
- 1 x 10,000psi (700 Bar) Hydraulic Sealed Hand Pump
- 1 x 10,000psi (700 Bar) Hydraulic Hose 2.1M long
- 1 x 10,000psi (700 Bar) Hydraulic Gauge
- 1 x Ratchet and Strap
- 1 x Instruction Manual
- 1 x Robust molded case with HD Fitted Foam & Wheels
AT9S - Tool Only
Kit Includes:
- 9 Ton Hydaulic Flange Alignment Tool with 10,000 PSI cylinder
- Ratchet
- Rathet Strap
Rental / Purchase Option & Availability
Rental: In Stock and usually ships same day. (Brand may vary)
Purchase: AT9K Usually ships sameday.
