Precision Low Profile Lifting Tool – Technical Operation & Operator Assistance
🛠️ Step Wedge Lifting Tool – Technical Operation & Operator Assistance

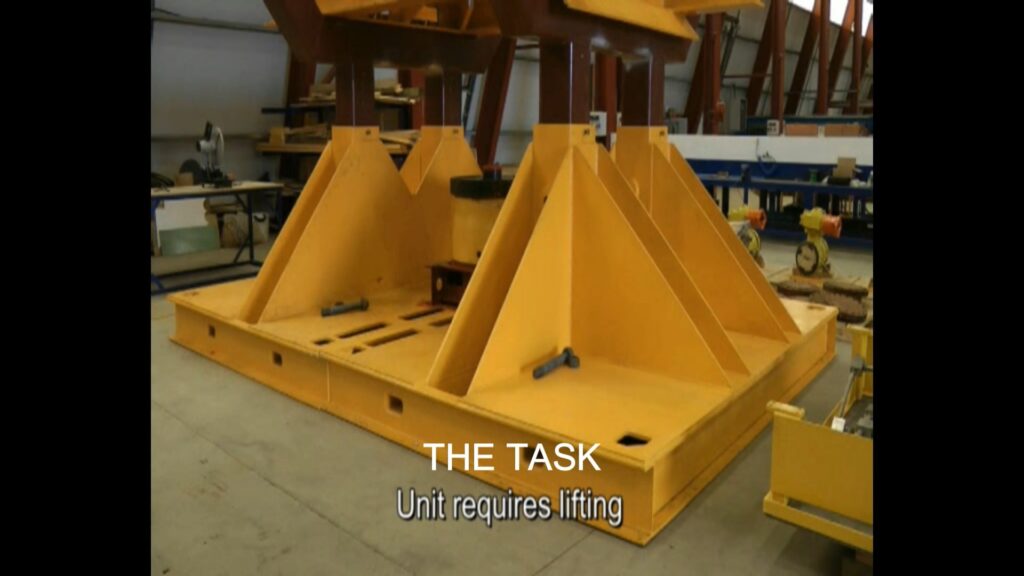

The Step Wedge Lifting Tool is engineered to safely and progressively elevate heavy platforms or equipment in areas where clearance is too limited for forklift tines. Its low-profile design allows insertion into tight gaps, enabling controlled lift without the need for conventional lifting machinery.
🔧 How It Works
- Progressive Lift Control: Each step or notch in the wedge profile allows for incremental lifting, giving operators precise control over elevation without sudden shifts or instability.
- Low-Profile Insertion: The tapered leading edge enables easy insertion between objects or under components with minimal clearance.
- Load Distribution: The wide base and stepped geometry distribute force evenly, reducing the risk of flange damage or misalignment.
- Safety Features: Anti-slip surfaces and mechanical stops prevent over-extension or slippage under load.
👷 Operator Benefits
- Hands-Free Elevation: Reduces the need for crowbars, prying, or manual lifting—minimizing pinch-point hazards and ergonomic strain.
- Compact & Portable: Lightweight design allows easy transport and use in confined or elevated workspaces.
- Compatible with Fit-Up Tools: Often used in conjunction with forklifts
Tool Variants

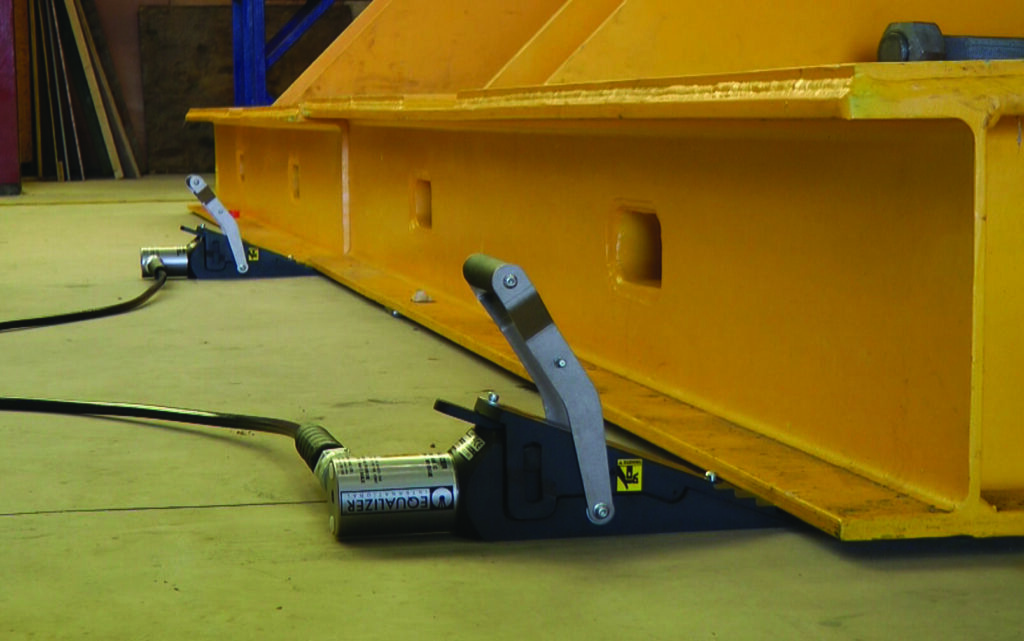

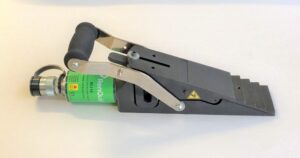

🧰 WJ19K Hydraulic Lifting Wedge Jack – Technical Description
The WJ19K is a high-force hydraulic lifting wedge engineered for precision lifting, pushing, and spreading in flange alignment, gasket replacement, and confined-access maintenance tasks. Unlike the WJ19P, the WJ19K operates with an external hydraulic pump, making it ideal for teams already equipped with 10,000 psi power packs and seeking compact, modular lifting solutions.
🔧 Operating Principle
- Dual-Wedge Action: The tool features two interlocking forged steel wedges—one fixed and one mobile. When pressurized hydraulic fluid is applied, the mobile wedge slides over the base wedge, converting horizontal force into vertical lift.
- Step Engagement: The stepped wedge profile allows incremental lifting with secure mechanical engagement at each stage, preventing slippage and enabling precise elevation control.
- External Hydraulic Interface: The WJ19K connects to standard 700 bar (10,000 psi) hydraulic systems, delivering up to 183 kN (18.3 metric tons) of lifting force.
📐 Technical Specifications
- Minimum Access Gap: 9.5 mm (0.37″)
- Maximum Lifting Height: 67.5 mm (2.66″) with stepped block
- Jaw Step Depth: 15 mm (0.59″)
- Wedge Protrusion: 39 mm (1.54″)
- Tool Dimensions: 105 mm × 135 mm × 410 mm (4.1″ × 5.3″ × 16.1″)
- Tool Weight: 8.5 kg (18.7 lbs)
- Kit Weight: 13 kg (28.7 lbs)
- Kit Dimensions: 580 mm × 340 mm × 180 mm (22.8″ × 13.4″ × 7.1″)

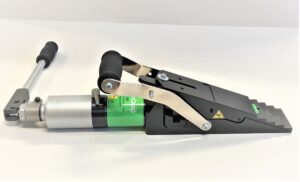

🧰 WJ19P Hydraulic Lifting Wedge Jack – Technical Description
The WJ19P is a compact, high-force hydraulic lifting wedge designed for precision lifting, pushing, and spreading in tight-access industrial environments. Engineered with an integrated hydraulic cylinder and pump unit, the WJ19P eliminates the need for external power sources, making it ideal for remote or confined field operations.
🔧 Operating Principle
- Step Engagement: The stepped profile allows incremental lifting with secure mechanical engagement at each stage, preventing slippage and ensuring controlled elevation.
- Self-Contained Hydraulic System: The integrated 10,000 psi pump delivers up to 183 kN (18.3 metric tons) of lifting force without external hoses or power packs.
- Dual-Wedge Action: The tool features two interlocking steel wedges—one fixed and one mobile. As the operator actuates the built-in hydraulic pump, the mobile wedge slides forward over the base wedge, converting horizontal motion into vertical lift.
📐 Technical Specifications
- Minimum Access Gap: 9.5 mm (0.37″)
- Maximum Lifting Height: 67.5 mm (2.66″) with stepped block
- Jaw Step Depth: 15 mm (0.59″)
- Wedge Protrusion: 39 mm (1.54″)
- Tool Dimensions: 105 mm × 135 mm × 450 mm (4.1″ × 5.3″ × 17.7″)
- Tool Weight: 9.5 kg (20.9 lbs)
- Kit Weight: 14 kg (30.9 lbs)
- Kit Dimensions: 580 mm × 340 mm × 180 mm (22.8″ × 13.4″ × 7.1″)
