AutoTORQ Chain Pipe Wrench: 5 Proven Benefits for Safer Pipe Make-Up & Break-Out

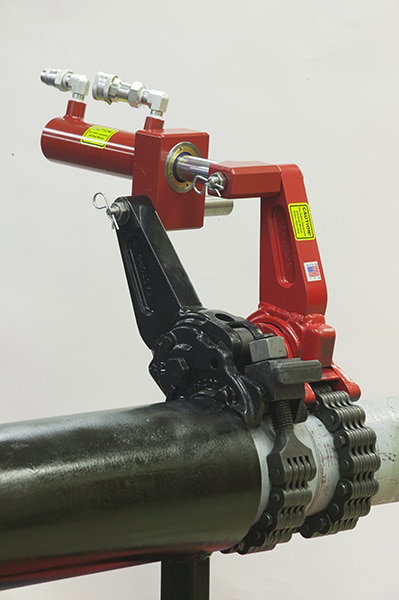

The AutoTORQ Hydraulic Chain Pipe Wrench is a portable hydraulic tool built to make up and break out threaded pipe connections, replacing manual tongs and come-alongs. Operating at up to 6,000 psi, it delivers 10,367 to 83,998 ft-lb of torque across five models covering pipe outside diameters from 1″ to 14″. Once the chain is latched around the pipe, the operator moves to a safe distance and controls the tool remotely, eliminating the need to work inside the hazardous swing radius required by manual tongs. ESI offers the AutoTORQ Chain Pipe Wrench as a made-to-order purchase, manufactured by FASTORQ.
Key Features
- Hydraulic-powered pipe make-up & break-out
- 6,000 psi maximum operating pressure
- 10,367 to 83,998 ft-lb torque range
- Pipe OD range 1″ to 14″ (5 models)
- Optional Low Profile Reaction Unit with ZipNut Technology
Key Applications
- Drill Pipe, Drill Collar & Casing Connections
- Rig Floor Make-Up / Break-Out
- Drill String Service Centers & Pipe Yards
- Oilfield & Industrial Pipe Connections
PW1STR — 1″ to 6″ Pipe OD
| Pipe OD Range | 1″ to 6″ |
|---|---|
| Max Torque (ft-lb) | 10,367 |
| Weight (lb) | 60 |
Operates at up to 6,000 psi and is available with an optional Low Profile Reaction Unit for space-restricted piping connections. Made to order — contact ESI to confirm sizing for your application.
PW2STR — 2-1/8″ to 5″ Pipe OD
| Pipe OD Range | 2-1/8″ to 5″ |
|---|---|
| Max Torque (ft-lb) | 23,185 |
| Weight (lb) | 114 |
Operates at up to 6,000 psi and is available with an optional Low Profile Reaction Unit for space-restricted piping connections. Made to order — contact ESI to confirm sizing for your application.
PW3STR — 3″ to 8-1/4″ Pipe OD
| Pipe OD Range | 3″ to 8-1/4″ |
|---|---|
| Max Torque (ft-lb) | 24,379 |
| Weight (lb) | 136 |
Operates at up to 6,000 psi and is available with an optional Low Profile Reaction Unit for space-restricted piping connections. Made to order — contact ESI to confirm sizing for your application.
PW4STR — 4-3/4″ to 10-3/4″ Pipe OD
| Pipe OD Range | 4-3/4″ to 10-3/4″ |
|---|---|
| Max Torque (ft-lb) | 46,633 |
| Weight (lb) | 189 |
Operates at up to 6,000 psi and is available with an optional Low Profile Reaction Unit for space-restricted piping connections. Made to order — contact ESI to confirm sizing for your application.
PW5STR — 8-1/8″ to 14″ Pipe OD
| Pipe OD Range | 8-1/8″ to 14″ |
|---|---|
| Max Torque (ft-lb) | 83,998 |
| Weight (lb) | 350 |
Operates at up to 6,000 psi and is available with an optional Low Profile Reaction Unit for space-restricted piping connections. Made to order — contact ESI to confirm sizing for your application.
Technical Data Sheet & Availability
- Made to order — available for purchase only.
- AutoTORQ Chain Pipe Wrench Technical Data Sheet
🔩 Why Choose ESI for the AutoTORQ Chain Pipe Wrench?
ESI Flange Spreader Rentals delivers field-ready solutions backed by technician-approved safety, precision, and reliability. The AutoTORQ Chain Pipe Wrench replaces manual tongs and come-alongs for pipe make-up and break-out, keeping operators clear of the hazardous swing radius around the pipe while delivering up to 83,998 ft-lb of torque across pipe sizes from 1″ to 14″. With nationwide delivery and expert support, ESI helps your crew work safely and efficiently across oil & gas, petrochemical, and industrial service sectors.
