AT4K Mechanical Flange Alignment Tool in Action Field Demo
See the AT4K Mechanical Flange Alignment Tool in action in this live field demonstration — engineered for compact power, precision, and safe operation in pipeline maintenance, petrochemical facilities, and heavy industrial applications.
A field technician walks through proper setup, installation, and safe handling — covering positioning, even force application, and control throughout the alignment process to reduce downtime and maintain compliance with safety standards.
From correcting flange shifts caused by thermal expansion or corrosion to supporting valve replacements and gasket installations, the AT4K delivers precise, repeatable results across oil & gas, chemical processing, and industrial pipeline operations.
Compact yet powerful, the AT4K combines engineering excellence with practical usability — this video serves as both a technical guide and training tool for achieving safer, faster, more reliable results in the field.
Key Specifications
- Capable of 4 Tons of Aligning Force.
- Bolt‑Hole Hook Engagement – Delivers secure setup and stability during alignment, reducing risk of slippage or damage.
- Hydraulic Wing Extension – Enables precise pipe‑to‑pipe alignment, improving accuracy in demanding pipeline applications.
- Compact & Portable Design – tool weights 12 Lbs/kit 14 lbs, sized at 23″ x 13.39″ x 7.1″
- Safety accessories include calibrated torque wrench to prevent operator over torque.
- Supported with 24 month manufacturer warranty and Certificate of Conformance.
Main Applications
- Flange Alignment – Ensures precise joint positioning during pipeline construction and maintenance, reducing stress and leak risks.
- Pipeline Installation – Supports accurate flange connections for oil & gas, petrochemical, and industrial pipelines, improving long‑term reliability.
- Valve Replacement – Provides controlled joint separation to safely remove and install valves without damaging sealing surfaces.
- Gasket Seating – Creates the necessary clearance for proper gasket placement, ensuring tight seals and preventing costly leaks.
- Field Training – Demonstrates safe, hands‑on techniques for technicians in oil & gas, petrochemical, and industrial sectors, building confidence and compliance
AT4K Flange Alignment Tool Kit Options
AT4K Tool Kit

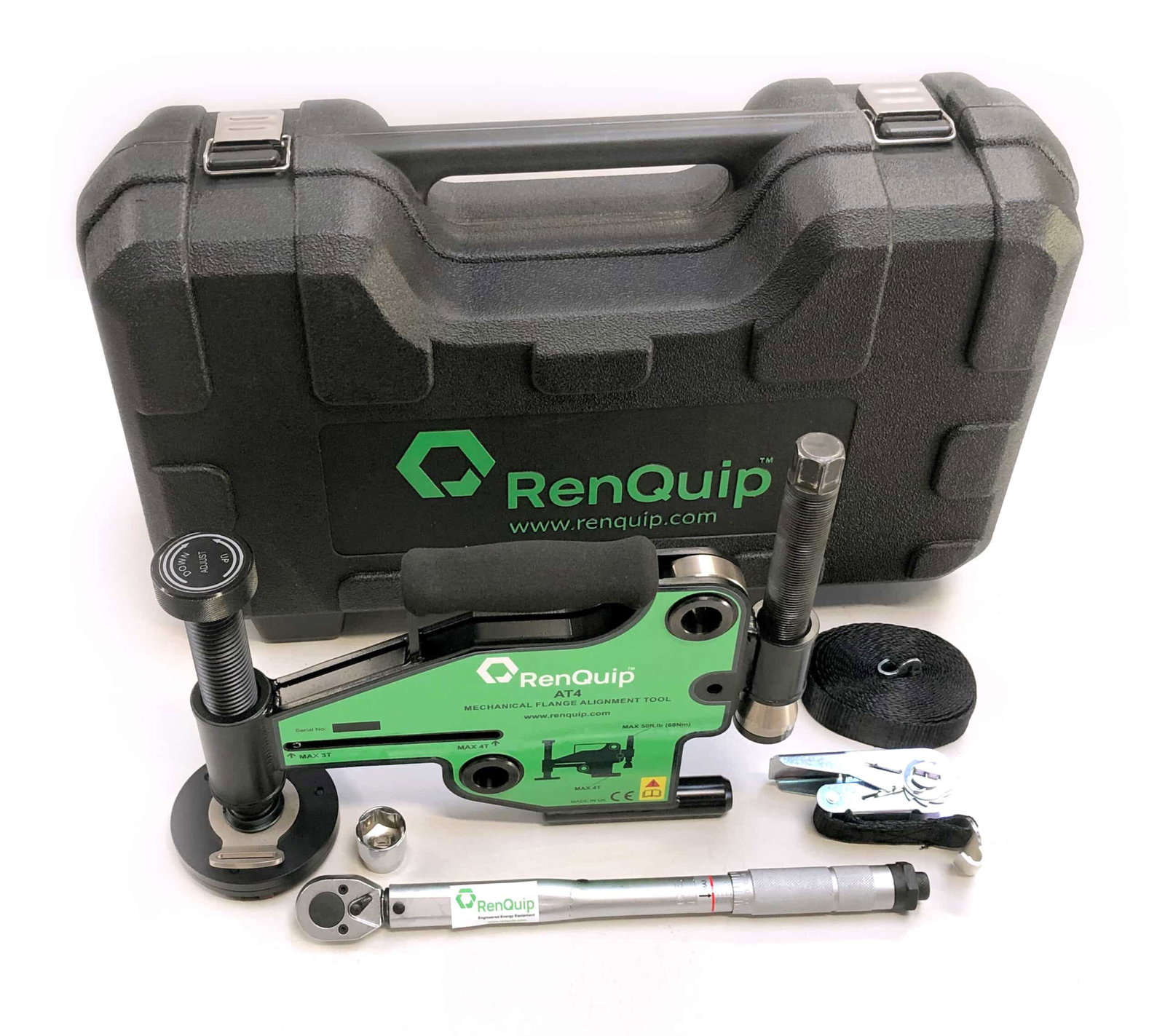

Kit Includes:
- 1 x 4 Ton Mechanical Flange Alignment Tool
- 1 x 150 ft. lb. Calibrated Torque wrench & 22mm Socket
- 1 x Ratchet and Strap
- 1 x Instruction Manual
- 1 x Robust Molded Case with Handle & HD Fitted Foam
Rental / Purchase Option and Availability
Availability:
Rental: Usually ships sameday if requested before 2pm. (Brand may Vary)
Purchase: AT9K Ships within 24-48 Hours.
🔩 Why Choose ESI Flange Spreader Rentals?
ESI Flange Spreader Rentals delivers field-ready solutions backed by technician-approved safety, precision, and reliability. Our zero-gap and mechanical flange spreaders are engineered for confined-space access, spark-free operation, and OSHA-compliant performance—ideal for pipeline maintenance, hydrotesting, and valve replacement. With nationwide delivery, hands-on training, and expert support, ESI ensures your crew has the right tools to work safely, efficiently, and in full compliance across oil & gas, petrochemical, and power generation sectors.
See our “How to Video” at Training Video for Flange Alignment Tool
