Flange Alignment Tool Rental
ESI rents hydraulic and mechanical flange alignment tools for correcting bolt-hole and rotational misalignment on flanged joints across the oil & gas, petrochemical, and power generation industries. A flange alignment tool pulls misaligned bolt holes into position so bolts can be inserted without forcing a joint or damaging threads — critical on large-diameter flanges where hand tools and pry bars can’t safely close the gap. Houston-based with nationwide delivery, ESI equips crews for scheduled turnarounds and emergency repairs alike.
Equalizer Flange Alignment Tools ESI Rents
Which flange alignment tool fits a given job depends mainly on the degree of misalignment and whether hydraulic or mechanical operation is preferred. Choose the flange alignment tool that fits your job:

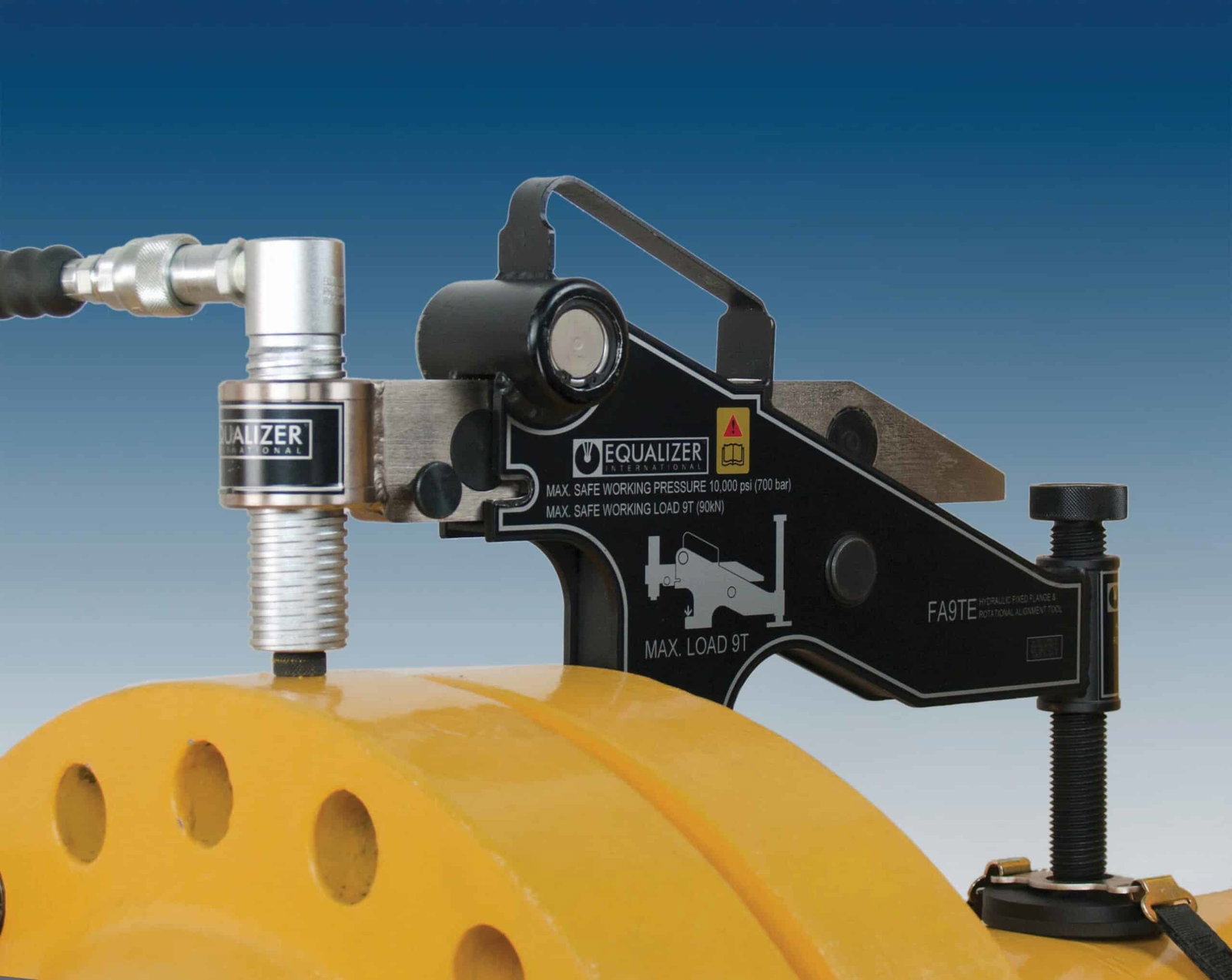

Equalizer FA9TE — 9 Ton Hydraulic Flange Alignment Tool
Hydraulic flange alignment tool for fast, safe correction of bolt-hole misalignment on large-diameter flanges. Requires a minimum 1.40-inch bolt hole and includes a 240 mm (9.45-inch) wing extension. Ideal for shutdowns, turnarounds, and field maintenance.
Best for: refineries, petrochemical facilities, and power-generation maintenance crews.
Equalizer FA4TM — 4 Ton Mechanical Alignment Tool
Mechanical flange spreading kit for safe, controlled separation of stubborn or seized flanges during maintenance. Requires a minimum 0.24-inch (6 mm) flange gap for tool entry.
Best for: refineries, petrochemical facilities, and power-generation crews needing a compact, non-hydraulic alignment option.
Why This Matters for Turnaround Planning
A misaligned flange that can’t be pulled into position holds up bolt-up, which holds up everything scheduled behind it. Tools that correct bolt-hole and rotational misalignment in a controlled, measured way — rather than forcing a joint with a bar or sledge — protect flange faces and threads while keeping the schedule intact.
Why Choose ESI for Flange Alignment Tool Rentals
ESI’s Flange Alignment Tool Rentals deliver field-ready alignment equipment backed by technician-approved safety, precision, and reliability. With nationwide delivery and expert technical support, ESI helps crews work safely and efficiently across oil & gas, petrochemical, and power generation turnarounds.
Need Assistance… use ESI’s Flange Master Tool to match your flange spec to the right alignment tool.
Contact ESI to confirm current availability, rates, and rental terms for either of these tools before your next scheduled turnaround or shutdown.
Choosing Between the FA9TE and the FA4TM
The FA9TE is a hydraulic tool built for larger bolt holes and heavier misalignment, with a minimum 1.40-inch bolt hole requirement and a 240 mm wing extension for reach on large-diameter flanges. The FA4TM is a mechanical tool built for a tighter minimum flange gap of 0.24 inch (6 mm), making it a compact, non-hydraulic option when hydraulic power isn’t available or needed on site. Crews often keep both on hand: the FA9TE for large-diameter, higher-force jobs, and the FA4TM as a lighter option for smaller flanges and quick fixes.
Contact ESI’s team to confirm which flange alignment tool is the right fit for a specific bolt-hole size, flange diameter, and gap before it ships.
