Hydraulic Zero Gap Flange Spreader – Field Demo & Best Practices
This instructional video provides a comprehensive look at the Hydraulic Zero Gap Flange Spreader, presented in a live field demonstration to highlight its unique capabilities. Unlike traditional spreaders, this tool is engineered to deliver safe and efficient flange separation even when no initial gap exists between flange faces. Its compact yet powerful design makes it indispensable for pipeline maintenance crews, mechanical fitters, and safety supervisors working in confined or high‑risk environments.
The demonstration emphasizes how the Zero Gap tool applies controlled hydraulic force to achieve reliable separation without damaging flange surfaces. Viewers will see how the tool supports critical maintenance tasks such as valve replacement, gasket removal, blind flange access, and turnaround operations across oil & gas, petrochemical, and heavy industrial facilities.

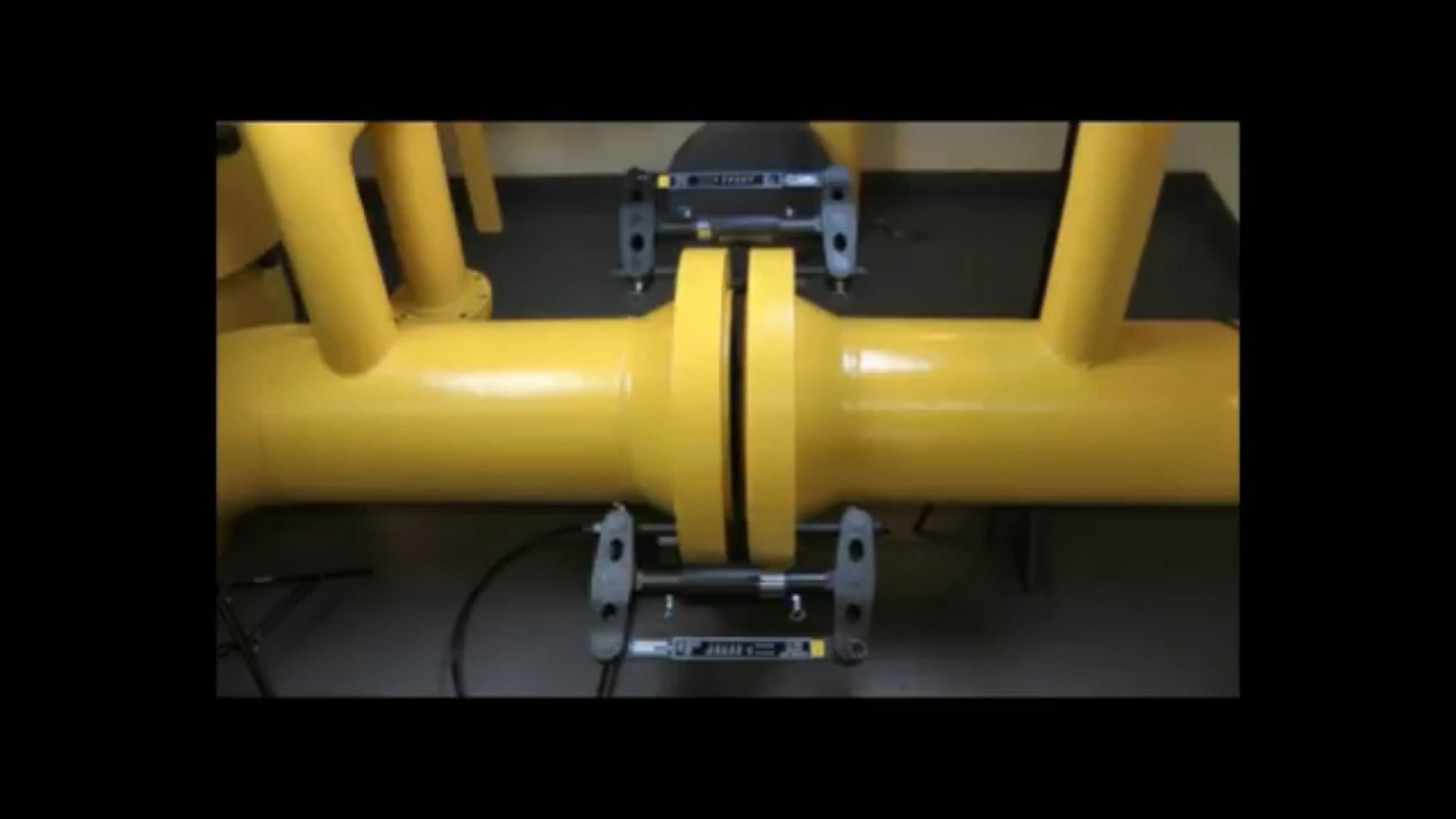

A field technician guides the audience step‑by‑step through proper setup, alignment, and safe operation on a pressurized flange joint. The video reinforces best practices for tool positioning, hydraulic control, and balanced force application, ensuring crews maintain compliance with industry standards.
By combining expert instruction with real‑world application, this resource equips professionals with the knowledge to operate the Hydraulic Zero Gap Flange Spreader confidently. It underscores the importance of preparation, precision, and safety awareness—making it an essential training tool for technicians, engineers, and supervisors committed to reliable pipeline maintenance and operational excellence.
Key Specifications
- Delivers 13 tons (130 kN) of spreading force per tool, ideal for flanges with little or no initial gap. 26 Tons when used in pairs as recommended.
- Compact design at 20.3″ x 12.4″ x 2.8″ weighing 47 Lbs. to fit in tight spaces.
- Patented expanding collet technology locks securely into bolt holes (M39, M42, M45) for controlled, measurable force.
- Spreading distance of 0–115 mm (4.53″) provides versatility across a wide range of flange assemblies.
- Supplied with safety blocks, spacers, and carry case, supporting efficient field use and tool longevity.
- Compatible with ANSI, DIN, ASME, API, and BS flanges, making it suitable for valve change‑outs, gasket removal, and blind flange access.
Main Applications
- Flange Joint Separation: The tool applies controlled mechanical or hydraulic force directly between flange faces, allowing technicians to safely open joints without damaging sealing surfaces. This is especially useful in corroded or tightly assembled pipelines.
- Gasket Replacement: By creating precise clearance, the spreader enables maintenance crews to remove worn gaskets and install new ones efficiently, ensuring proper sealing and reducing the risk of leaks.
- Valve Access: The spreader provides the necessary gap for valve removal or installation, helping engineers and fitters complete change‑outs quickly while maintaining alignment and safety standards.
- Pipeline Integrity Assurance: Regular use during inspections supports safe disassembly and reassembly of flanges, ensuring that pipelines remain compliant with industry codes and operational reliability.
Hydraulic Zero Gap Flange Spreader Kit Options
Hydraulic SG13 Zero Gap Tool Kit 1

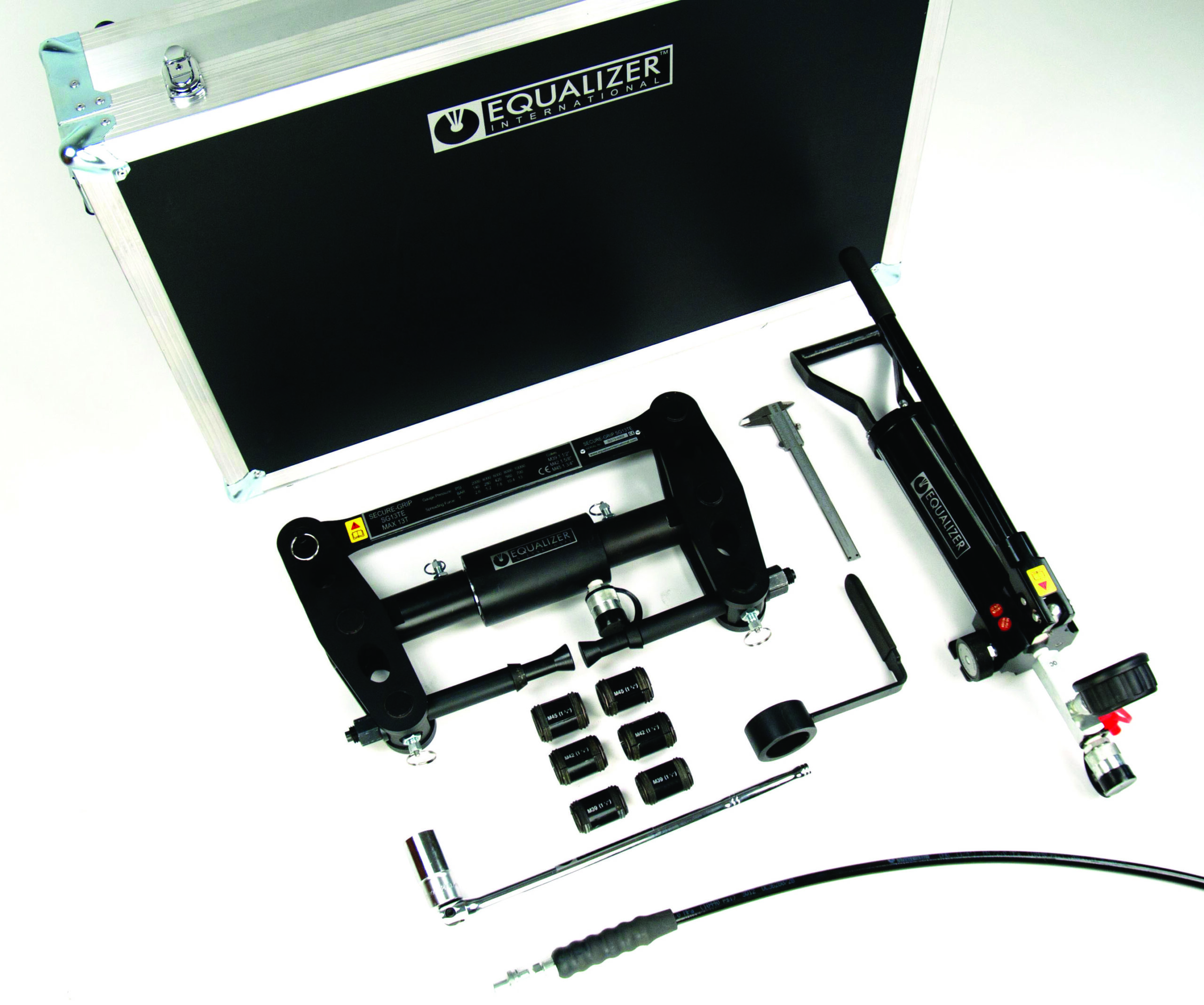

Kit Includes:
- 1 x SG13TE Tool c/w Hydraulic Cylinder (13 Tonses of Spreading Force)
- 1 x 700 bar (10 000 psi) HP 550S Sealed Hand Pump with Gauge
- 1 x 700 bar (10 000 psi) Hydraulic Hose, 2 m (78.7”)
- 1 x 150 mm (6”) Vernier Calliper
- 1 x (1/2”) Square Drive Flexible Handle
- 1 x 30 mm (1 1/8”) Drive Socket
- 1 x Safety Block
- 2 x M39 (1 1/2”) Collets
- 2 x M42 (1 5/8”) Collets
- 2 x M45 (1 3/4”) Collets
- 1 x Instruction Manual
- 1 x Carry Case with protective foam inserts
** Important Disclosure: For Safety Reasons we recommend using any flange spreaders in pairs.
Hydraulic SG13 Zero Gap Twin Kit 2
Kit Includes:
- 2 x SG13TE Tool c/w Hydraulic Cylinder (13 Tons of Spreading Force)
- 1 x 700 bar (10 000 psi) HP 550D Sealed Twin Port Hand Pump with Twin Gauges
- 2 x 700 bar (10 000 psi) Hydraulic Hose, 2 m (78.7”)
- 1 x 150 mm (6”) Vernier Calliper
- 1 x (1/2”) Square Drive Flexible Handle
- 1 x 30 mm (1 1/8”) Drive Socket
- 2 x Safety Block
- 4 x M39 (1 1/2”) Collets
- 4 x M42 (1 5/8”) Collets
- 4 x M45 (1 3/4”) Collets
- 1 x Instruction Manual
- 1 x Carry Case with protective foam inserts
**Discount Eligible for all Twin Kits**
Availablity
Availabilty:
Rent– Ships Same Day
Choosing ESI Flange Spreaders
Means investing in field-proven safety, precision, and reliability for pipeline maintenance. Engineered for zero-gap access and confined-space applications, our hydraulic flange spreaders deliver controlled force without compromising joint integrity. Backed by OSHA-compliant documentation, nationwide delivery, and technician-approved training, ESI tools are trusted across oil & gas, petrochemical, and power generation sectors. Whether you’re tackling routine maintenance or critical shutdowns, ESI ensures your crew has the right equipment to perform safely, efficiently, and in full compliance.
ESI is a division of Enerteq Solutions, Inc.
