Description

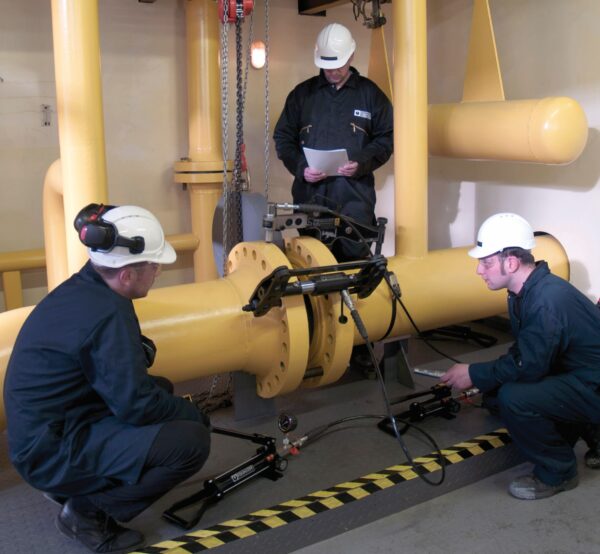

Innovative Flange Separation Tool: Leveraging Equalizer’s exclusive Expanding Collet Technology, the high pressure zero gap flange spreader tool applies a precise and regulated force to effectively separate flanges, even when the access gap is minimal or non-existent. It’s also fully capable of handling flanges with larger access gaps.
Universal Compatibility: The Secure-Grip Flange Spreader series is designed to be almost universally applicable, accommodating a wide array of flange standards including ANSI, DIN, SPO, ASME, API, and BS.
Safety and Integrity: Adhering to industry “best practices,” it is recommended to employ a minimum of two tools when working on a flange. This ensures not only the safety of the operation but also the preservation of flange face integrity.
|

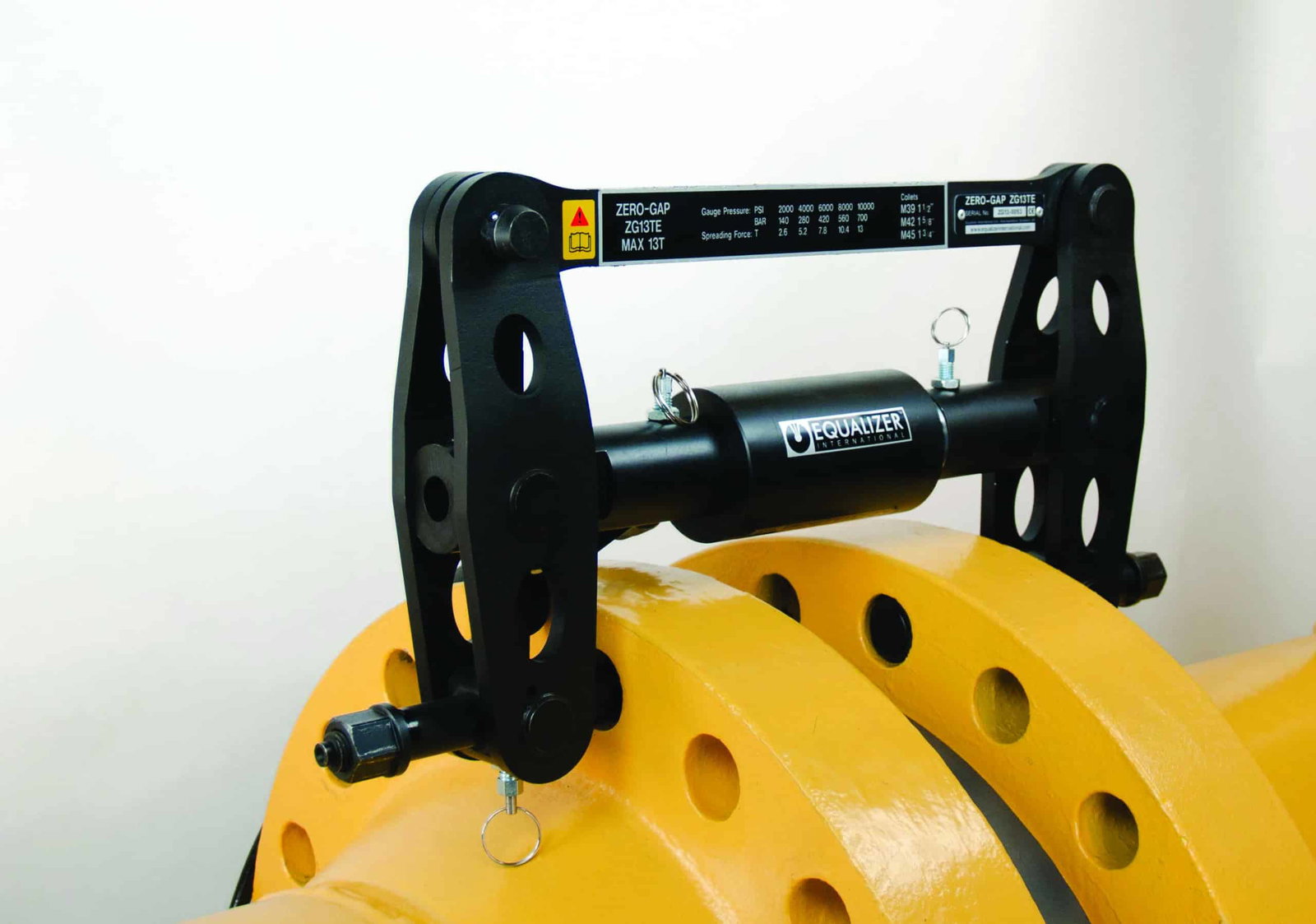

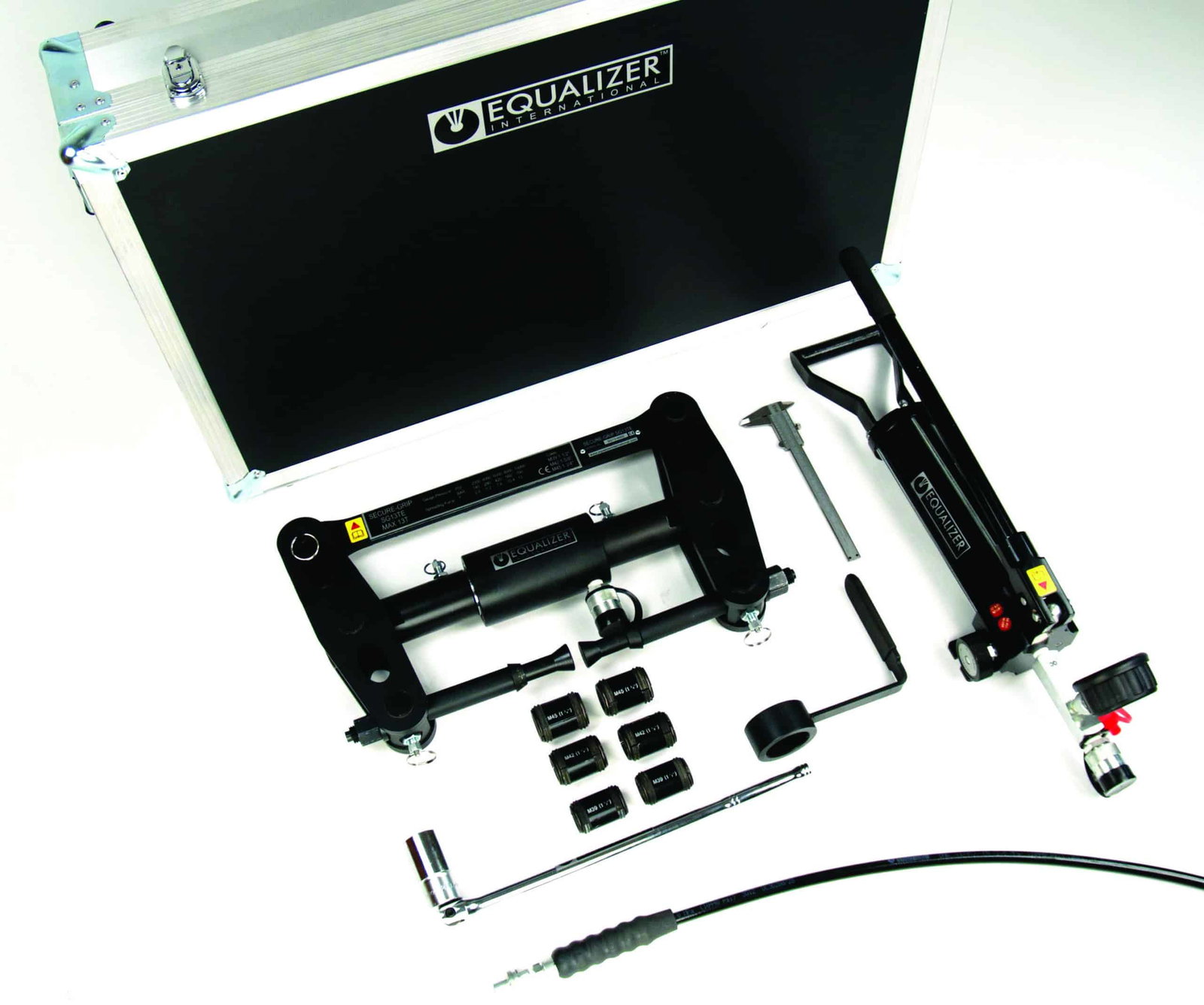

HPHZG-KIT Hydraulic SPREADING DISTANCE: Up to 4.53″ (115mm) TOOL WEIGHT: 47.3 lb (21.5 kg) SPREADING FORCE: 13 T (130 kN) per tool — 2 x 13 T = 26 T (260 kN) in pairs |
| Dimensions | Measured From | Measured To | Minimum | Maximum |
| Flange Joint Thickness | Outside Face of Flange | Outside Face of Flange | 120mm (4.7″) | 310mm (12.2″) |
| Valve/Spacer Thickness | Inside Face of Flange | Inside Face of Flange | 0.0 mm (0.0”) | 95 mm (3.7”) |
| Flange Clearance | Bolt-Hole Circle | Largest OD of Valve/Spacer | – | 70 mm (2.8”) |
| Radial space | Bolt-Hole Circle | Closest Obstruction | 280 mm (11.0“) | – |
| Axial space (for installation) | Outside Face of Flange | Closest Obstruction | 310 mm (12.2“) | – |
| Axial space (installed) | Inner Face of Flange | Closest Obstruction | 260 mm (10.2“) | – |
|

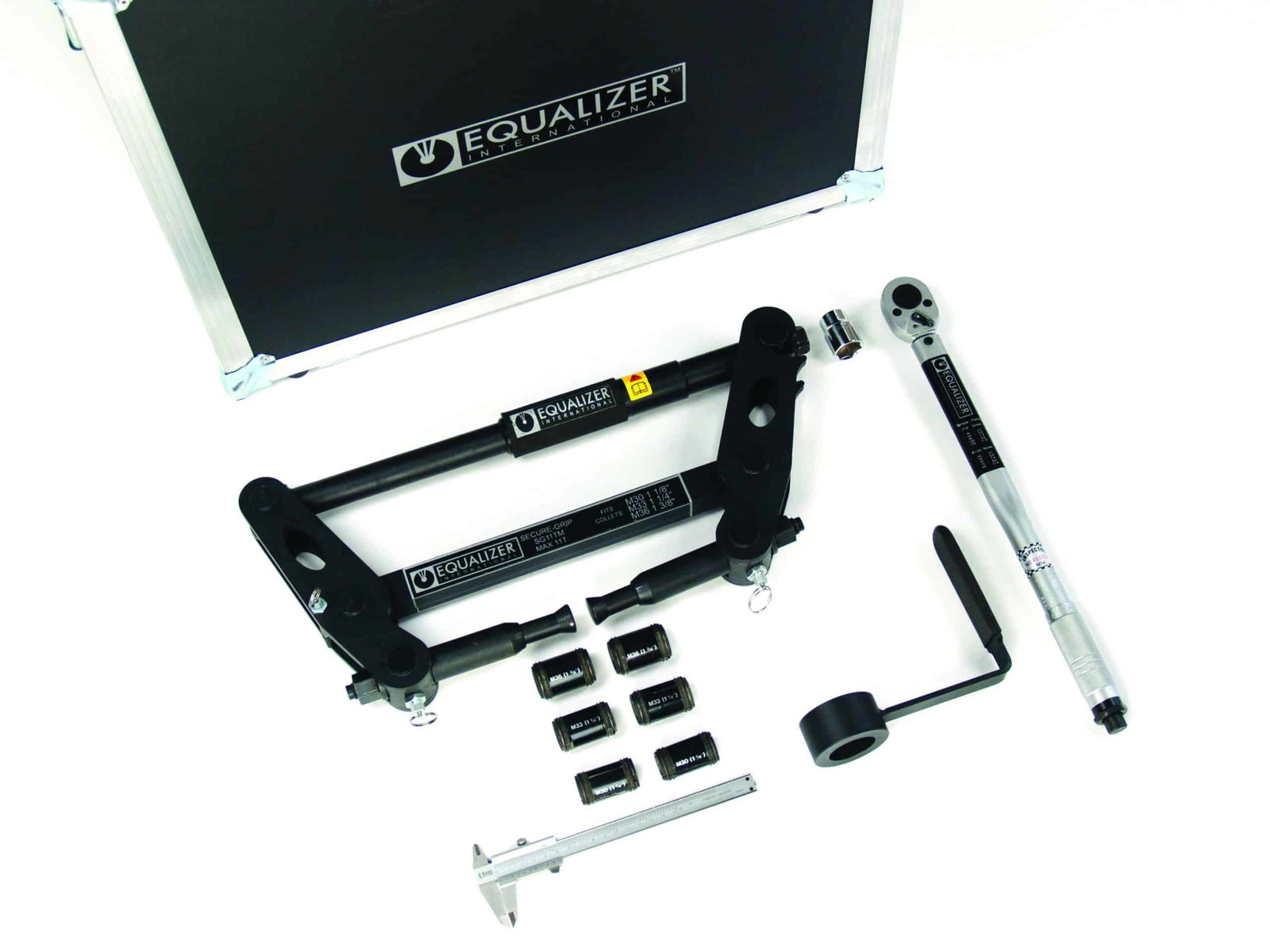

HPMZG-KIT Manual SPREADING DISTANCE: Up to 3.54″ (90mm) TOOL WEIGHT: 23.1 lb (10.5 kg) SPREADING FORCE: 11 T (110 kN) per tool — 2 x 11 T = 22 T (220 kN) in pairs |
| Dimensions | Measured From | Measured To | Minimum | Maximum |
| Flange Joint Thickness | Outside Face of Flange | Outside Face of Flange | 3.8″ (96mm) | 9.4″ ( 240mm) |
| Valve/Spacer Thickness | Inside Face of Flange | Inside Face of Flange | 0″ (0 mm) | 2.4″ (60mm) |
| Flange Clearance | Bolt-Hole Circle | Largest OD of Valve/Spacer | – | 2.4″ (60mm) |
| Radial space | Bolt-Hole Circle | Closest Obstruction | 9.4″ ( 240mm) | – |
| Axial space (for installation) | Outside Face of Flange | Closest Obstruction | 8.8″ (223mm) | – |
| Axial space (installed) | Inner Face of Flange | Closest Obstruction | 10.2″ (258mm) | – |
HPHZG-KIT Hydraulic Zero Gap (SG13TE) Flange Spreader Technical Data Sheet
HPMZG-KIT Mechanical Zero Gap (SG11TM) Flange Spreader Technical Data Sheet
